Vertical Type All Electric Machine JSW Machine JT08RAD

Vertical Type All Electric Machine JT08RAD 78 ton

Clamping force: 78kN

Compact & faster cycle

The JSW JT08RAD is a compact, fast-cycle all-electric vertical injection molding machine with industry-leading dry cycle and table rotation speed. It is particularly suited to high-mix, low-volume production and delivers very high productivity. Servo drives with absolute encoders keep accuracy at 0.01 mm — the level of a CNC machine — for precise, repeatable insert molding.

Key benefits

• Industry-leading dry cycle and rotary table speed
• Ideal for high-mix, low-volume production
• CNC-level 0.01 mm repeatability from servo drives with absolute encoders
• Up to 60% energy savings compared with hydraulic machines
• No hydraulic oil to store or dispose of
• Reduced cycle times and maintenance
• Compact footprint, easy to lay out in the factory

Stable clamping force

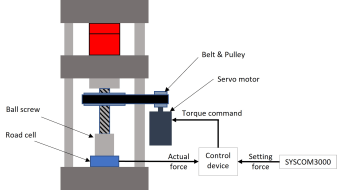

By adopting an all-electric direct-mechanism clamp unit, the JT08RAD achieves extremely high reproducibility of clamping force and setting follow-up. Because clamping force stays constant at all times, molded-part quality is stabilized, mold maintenance frequency is reduced, and mold life is extended.

Typical applications

The vertical clamp makes the JT08RAD ideal for insert molding and overmolding: electrical connectors and terminals, automotive sensors, medical components, and small technical parts with encapsulated inserts.

Perotec Systems is the Japan Steel Works partner for Serbia, Croatia, Bosnia and Herzegovina, North Macedonia and Montenegro — contact us to match a JT08RAD to your production.
