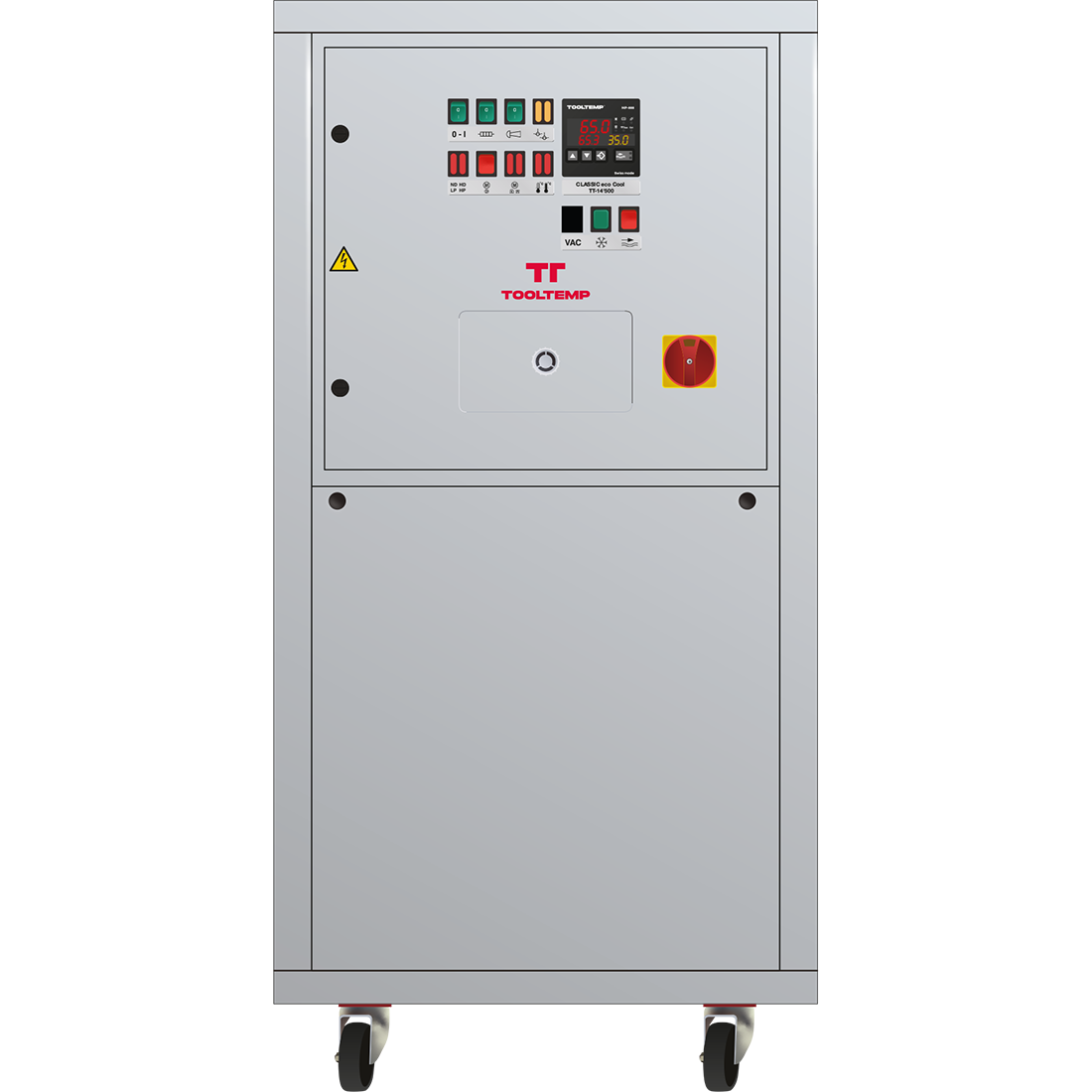

CLASSIC COOL TT-14500

Air- and water-cooled chiller CLASSIC eco Cool TT-14500

The TT-14'500 steps up to a 50-litre tank and a larger pump for production cells needing more sustained cooling than the TT-5'500. It is offered in both air-cooled and water-cooled condenser configurations, so it can be installed where a cooling-water supply already exists (water-cooled, more compact, no fan noise) or where none is available (air-cooled). As with the rest of the CLASSIC Cool range, it comes in a standard R-134a version, a high-performance R-407c (HP) version, and a low-GWP R-1234yf (LG) eco version.

Available variants

Cooling capacity: 14 kW (standard R-134a), 13 kW (LG), 17 kW (HP).

Technical data

• Dimensions (L×W×H): 950×660×1'300 mm, incl. castors
• Weight: approx. 190 kg empty
• Noise level: 68 dBA at 3 m distance
• Hermetically sealed compressor
• Connections: ¾" BSPP female thread (to/from mould), ½" BSPP female thread (auto. water refill), ½" BSPP female thread (cooling water inlet/outlet on water-cooled version)
• Colour: Silvergrey RAL 7001, optional stainless-steel housing

Controller and functions (MP-888)

• Self-optimizing temperature controller with temperature display in 1/10°C steps, Pt100 temperature sensor
• Display in °C or °F and l/min or gal/min
• Optional integrated heating for combined cooling/heating operation
• Automatic or manual refill, leakstopper device available depending on device
• Analogue interfaces: 0–10 V, (0)4–20 mA input, 0–10 V output; optional RS-232/RS-485/CAN/Profibus/Profinet/Ethernet-IP/OPC-UA/web interface

Safety

• Automatic level control with prewarning at low water level
• Electronic temperature limitation and monitoring in the controller
• Mechanical safety thermostats and mechanical pressure monitoring in the refrigeration circuit
• Visual and acoustic fault indications
• Integrated circuit breakers, main switch, transformer and motor protection switch
• Protection class IP44, CE labelling

Perotec Systems is the Tool-Temp partner for Serbia, Croatia, Bosnia and Herzegovina, North Macedonia and Montenegro — contact us to size the right CLASSIC Cool TT-14'500 variant for your production cell.
