MATIC DUO

Universal water or oil MATIC DUO 90/150 units

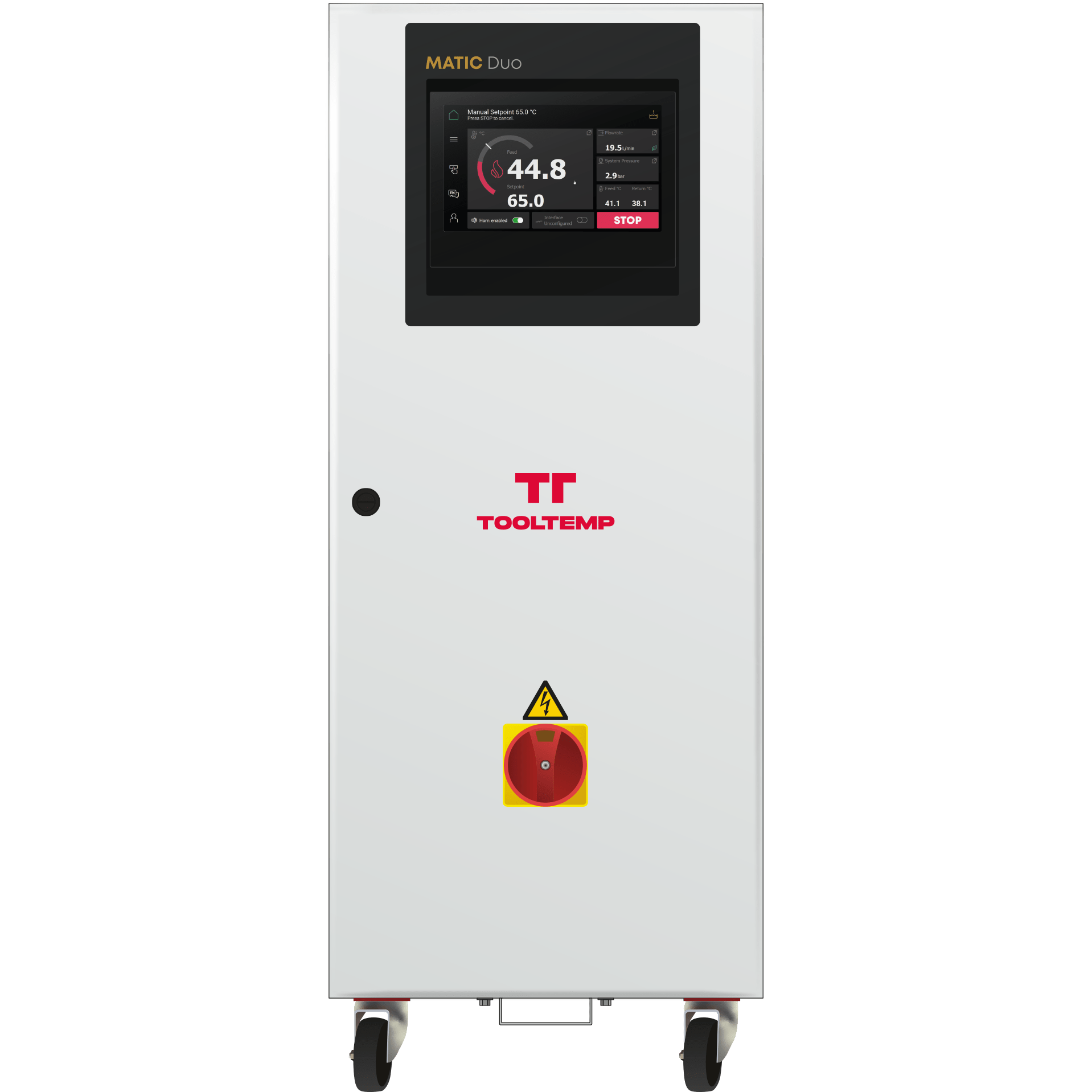

MATIC DUO units run on water or oil from a single machine, available in three sizes to match heating and pump demand — the 9 E for smaller moulds, and the 18 E / 18 H for larger tools, the H variant adding higher pump pressure for longer or more restrictive cooling circuits.

Available models

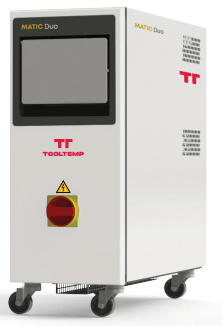

Summary (9 E)

• Maximum temperature 90°C water
• Maximum temperature 150°C oil
• Heating capacity 9 kW water
• Heating capacity 3 kW oil
• Cooling capacity 35 kW @ 90°C
• Cooling capacity 7 kW @ 150 °C
• Cooling method indirect (tube)

Robust Mechanical Design

• Tin-bronze submersible pump
• Calcification-free heat exchanger
• Fully immersed heaters made of high-temperature corrosion-free Nickel alloy (Incoloy 800)
• Maintenance-free flow meter
• Stainless-steel solid piping

Features

• IRIS control system
• Pt100 temperature sensors in feed and return lines
• Heater control by solid-state relays
• Variable-speed pump with automatic eco-mode
• Automatic filling (when operated with water)
• Mould evacuation
• Leakstop operating mode

Predictive Maintenance

• Continuous monitoring and self-diagnosis of the system
• Clear indication and description of errors
• Condition monitoring of the heat-transfer fluid (oil)
• Condition monitoring of the pump (coming soon)

Safety

• Redundant, mechanical temperature limiter
• Pump motor monitored by the variable frequency drive
• Configurable safeguard limits and corresponding reactions
• Configurable audible alarm

Operation

• Industrial-grade, tiltable 7″ IPS touch-screen
• Intuitive user interface for commissioning and operation
• Broad range of connectivity features (see page 3) including external temperature sensor
• Automatic actions for common operations
• User-defined time-resolved recipes
