MATIC OIL
Oil temperature control units up to 360°C, single and dual-circuit, MATIC OIL 200, 300 and 360
Details
Oil temperature control units MATIC OIL
MATIC OIL units cover high-temperature oil circuits up to 360°C, in single-circuit models from 16 to 48 kW and dual-circuit models that control two independent mould circuits from one unit, plus extra-high-temperature 300°C/200°C models for smaller moulds.
Single-circuit models (360°C)
| Model | Max. temp. | Fill volume | Heating capacity | Pump pressure |
|---|---|---|---|---|
| 360 16 Z | 360°C | 20 L | 16 kW | 5.5 bar |
| 360 24 Z | 360°C | 26 L | 24 kW | 5.5 bar |
| 360 32 Z | 360°C | 27 L | 32 kW | 5.5 bar |
| 360 48 Z | 360°C | 70 L | 48 kW | 5.5 bar |

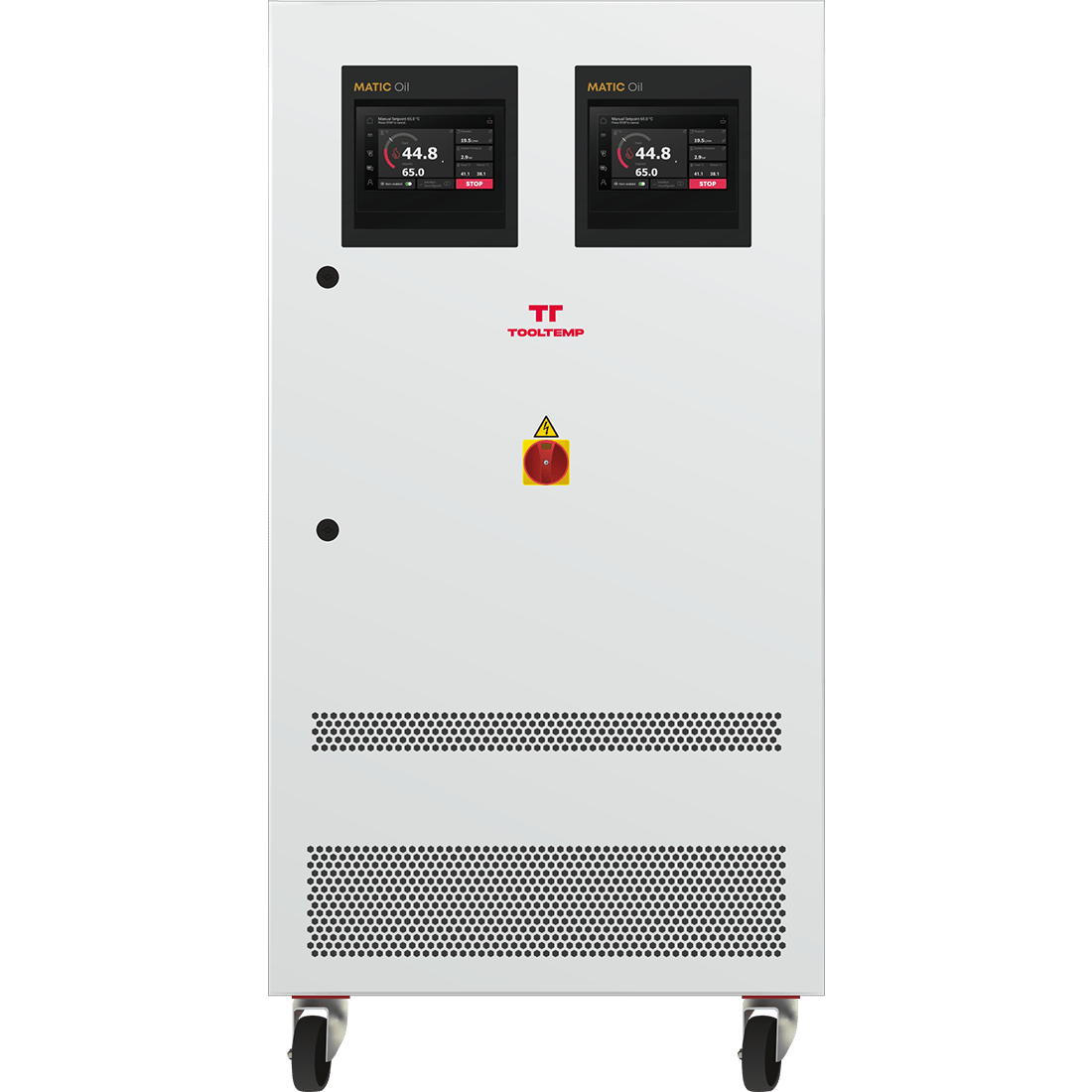

Dual-circuit models (360°C, 2 independent circuits)
| Model | Max. temp. | Fill volume | Heating capacity | Pump pressure |
|---|---|---|---|---|
| 360/2 16 Z | 360°C | 30 L | 16 kW | 5.5 bar |
| 360/2 24 Z | 360°C | 42 L | 24 kW | 5.5 bar |
| 360/2 36 Z | 360°C | 42 L | 36 kW | 5.5 bar |
Extra high-temperature models
| Model | Max. temp. | Fill volume | Heating capacity | Pump pressure | Pump flow |
|---|---|---|---|---|---|
| 300 12 Z | 300°C | 9 L | 12 kW | 5.5 bar | 100 l/min |
| 200 12 Z p | 200°C | 9 L | 12 kW | 5.5 bar | 100 l/min |
Features
- IRIS control system
- Pt100 temperature sensors in feed and return lines
- Heater control by solid-state relays
- Variable-speed pump with automatic eco-mode
- Mould evacuation
- Leakstop operating mode
Robust Mechanical Design
- Triple-bearing high-temperature pump (Tool-Temp manufactured)
- Inverted spiral-tube heat exchanger (limescale-free)
- Fully immersed heaters made of high-temperature corrosion-free Nickel alloy (Incoloy 800)
- Maintenance-free flow meter
- Stainless-steel solid piping
Safety
- Multiply redundant, mechanical temperature limiter
- Pump motor monitored by the variable frequency drive
- Configurable safeguard limits and corresponding reactions
- Configurable audible alarm
Perotec Systems is the Tool-Temp partner for Serbia, Croatia, Bosnia and Herzegovina, North Macedonia and Montenegro — contact us to size the right MATIC OIL model for your mould and process.
